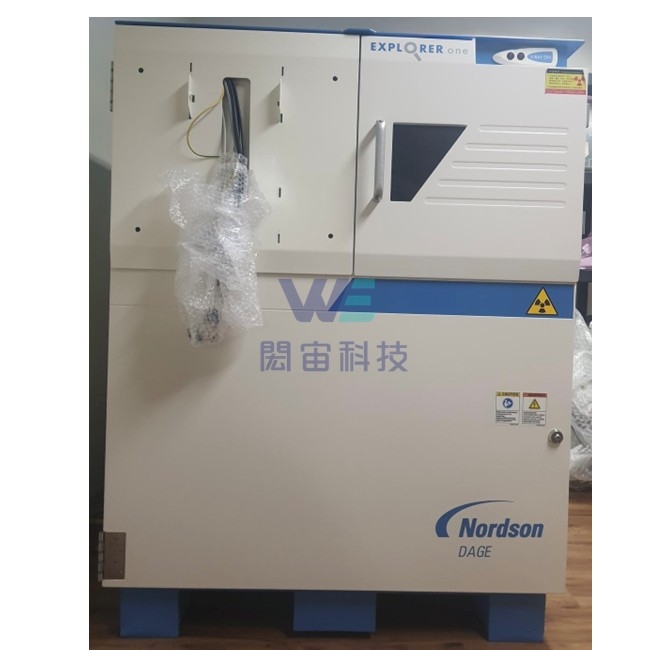

型號: Explorer One
年份:2022
狀態:DEMO機
用途:X-ray inspection

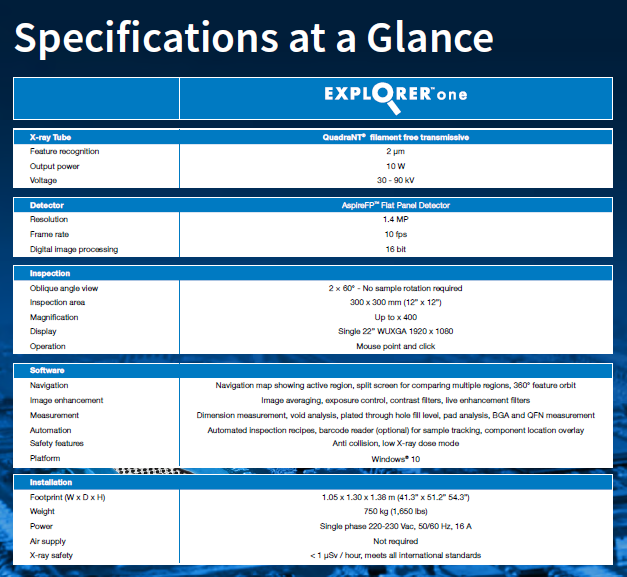

【詳細規格 Specifications】
Hardware & Optics
• Nordson DAGE QuadraNT™ Sealed-Transmissive X-ray Tube;
– < 2 μm feature recognition at all kVs
– up to 90 kV at 10 W target power
• Up to 60° oblique angle views
– isocentric manipulator configuration keeps features in field of view.
• Maximum board size:12" x 12" (300 × 300mm) with reduced magnification
• Dell PC and Dell 22" Monitor WUXGA 1920x1080.
• 400 X geometric magnification
• Long lifetime CMOS digital detector with 1.4 Mpixels:
– 10 fps full-frame ‘real time’ image acquisition
– Pixel Pitch 75um
– Digital Image Processing 16bit
Software & Features
• Nordson DAGE Image Wizard operating software including:
– automated and manual component fault analysis including BGA & QFN – simpleto create and use robust automated inspection routines
– plated through hole (PTH) fill percentage calculation– accurate measurement functions
– Automated and manual die attach / area void calculation – Patented1 x-raynavigation map for easy fault location
– Simple to use, no complicated joysticks required
• Easy, collision-free, high magnification and high resolution inspection:
– even at oblique angle views
– joystick-free ‘point and click’ operation
• Fully lead-shielded system safety cabinet – providing < 1 μSv/hrx-ray leakage
– meets all international standards
【Features & Technology】
QuadraNT® X-ray Tube Technology: High quality images begin with the X-ray source. Explorer one uses QuadraNT® X-ray tube technology to deliver market leading image quality at every power level, maintenance free.
Designed for Electronics: See features as small as 2 μm. The AspireFP flat panel detector, developed specifically for Explorer one, is optimized to give the highest contrast in electronics samples.
Up is Always Up: Never lose your way. Explorer one's unique dual axis oblique viewing keeps the board oriented up, whichever side you look at it from. The sample is never rotated.
Simplicity as Standard: Perform quality inspection quickly, easily and with minimal training so you can maximize your throughput.
Super Compact Footprint: Our smallest, lightest X-ray inspection system yet, Explorer™ one balances board size and system footprint, giving you a system which is easy to site and quick to install.
Reduce Downtime and Costs: Explorer one is a maintenance free, oil free X-ray inspection system. Regular preventative maintenance visits are not required to guarantee optimum X-ray performance.
EnviroShield™ Technology: A new proprietary (patent pending), lead free X-ray shielding technology from Nordson DAGE. It is non-toxic and easy to dispose of at end of life.
